Fiber Optic Converters
Description
We have multiple industrial communication solutions with Fiber optic to Ethernet converters and Fiber optic to serial converters. The solutions are configurable for different types of LC / SC ports and types of Multimode Fiber (Multimode), Singlemode Fiber (Singlemode) available with redundant power supplies for panel mounting or DIN Rail and device protection IP40 and higher for installation in industrial environments and with highly demanding climatic conditions.
Solutions and references
Fiber Optic Converters
Reference
KOM600G
2G Port Din-Rail Copper to Fiber Media Converters
characteristics
- Green Ethernet solution with ultra low power consumption design, its full load power consumption is as low as 4.5 watts
- 1 1000Base-X SFP port and 1 10/100 / 1000Base-T (X) RJ45 port
- Supports LFP (Step Failure Link)
- Redundant power inputs with wide voltage range
- Save and forward switching
- Protection class IP40
- CE, FCC certificates
Reference
KOM600
2 Port Din-Rail Copper to Fiber Media Converters
characteristics
- Green Ethernet solution with ultra low power consumption design, its full load power consumption is as low as 2 watts
- 1 100Base-FX port and 1 10 / 100Base-T (X) RJ45 port
- Supports LFP (Step Failure Link)
- Redundant power inputs with wide voltage range
- Save and forward switching
- Protection class IP40
- CE, FCC, UL508, Class I Div 2 certified
Reference
KOM300M
3 Port Managed Din-Rail Copper to Fiber Media Converters
characteristics
- Green Ethernet solution with ultra low power consumption design, its full load power consumption is as low as 2.7 watts
- 1 100Base-FX port and 2 10 / 100Base-T (X) RJ45 ports
- Supports remote monitoring of device status
- Redundant power inputs with wide voltage range
- Protection class IP40
- CE, FCC, UL508, Class I Div 2 certified

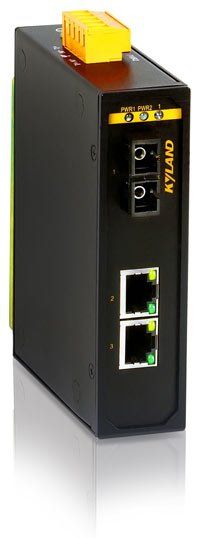

Reference
KOM300F
3 Port Din-Rail Copper to Fiber Media Converters
characteristics
- Green Ethernet solution with ultra low power consumption design, its full load power consumption is as low as 3.5 watts
- 1 100Base-FX port and 2 10 / 100Base-T (X) RJ45 ports
- Individual power inputs with wide voltage range
- Protection class IP40
- EMC level 4
- CE, FCC certificates
Reference
KOM300A
3 Port Din-Rail Copper to Fiber Media Converters
characteristics
- Green Ethernet solution with ultra low power consumption design, its full load power consumption is as low as 2.2 watts
- 1 100Base-FX port and 2 10 / 100Base-T (X) RJ45 ports
- Redundant power inputs with wide voltage range
- Protection class IP40
- CE, FCC, UL508, Class I Div 2 certified
Reference

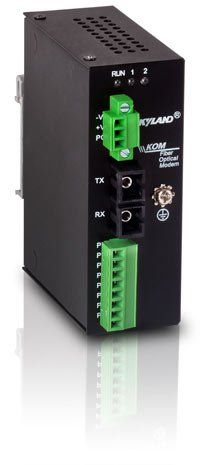

KOM200
Din-Rail Serial to Fiber Media Converters
characteristics
- 1 fiber port, 3 types of serial ports (RS232 / RS422 / RS485)
- Transparent communication without debugging, plug and play.
- Serial ports have a 15KV ESD protection circuit.
- Serial ports support hot plugging
- Abundant power supply options
- Protection class IP30
- FCC certificate
