Gateways
Reference

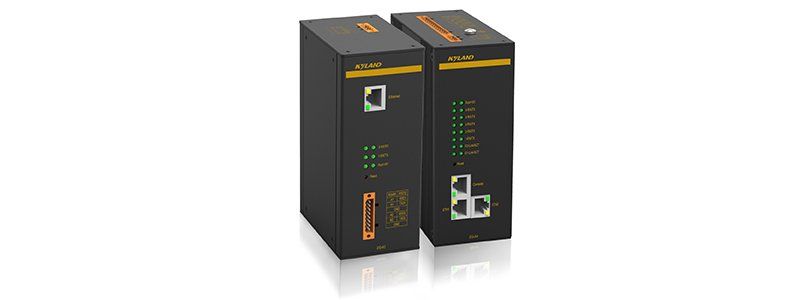

DG-A2/A4
Industrial DIN Rail Protocol Gateway for Smart Grid
characteristics
- DNP 3.0 Level-2 over serial or LAN port
- Modbus (RTU / ASCII) / Modbus over serial port and LAN
- IEC 60870-5-101 / 103/104 slave / master
- IEC 61850 MMS / GOOSE
- SoftPLC calculator
- Built-in storage: 512M Nand Flash
- Additional Storage: 8G / 64G Micro SD (Optional)
- Ethernet: 10 / 100Base-T
- Serial ports: RS232 / RS485 (isolated)
- Wireless port: 3G / GRPS
Reference

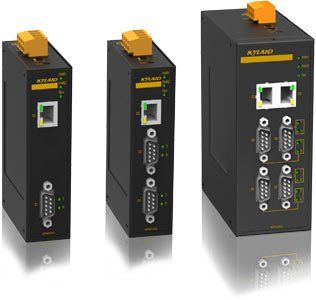

KGW3101/3102/3204
1, 2, 4- Serial port DIN-rail Modbus gateway
characteristics
- Convert between Modbus TCP and Modbus RTU / ASCII
- 1 or 2 Ethernet ports and 1, 2 or 4 RS-232/422/485 ports
- Supports transmission in transparent and agent mode
- 16 TCP devices per Ethernet port, client or server
- 128 devices per serial port, master or slave
- Built-in 2KV series insulation protection
- Metal housing with wide temperature rating (-40 to 75 ℃)
- Certificates: UL61010, Class I Div 2, CE, FCC, RoHS
Reference

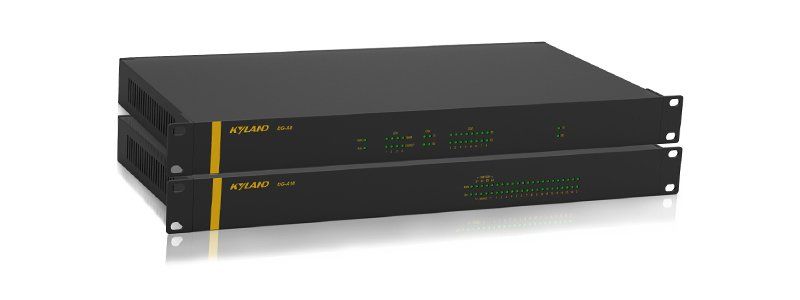

DG-A8/A16
Industrial Rackmountable Gateway for Smart Grid
characteristics
- Special design based on ARM Cortex-A8 architecture
- High performance but ultra low power consumption
- Simple import and configuration process IEC 61850 SCL (CID / ICD)
- Configurable MMS （IEC 61850-8-1） server and client application
- Supports public GOOSE and subscribe
- Built-in SoftPLC calculation task
- Configurable hardware watchdog
- Full functional NTP for time synchronization
- Supports IRIG-B DC time synchronization
- RS232 / RS485 isolated serial ports dual mode
- Remote diagnosis or network maintenance
- Complies with IEC 61850-3, IEEE 1613 standards
- Support protocol IEC-101/103/104, Modbus / RTU, Modbus / TCP
