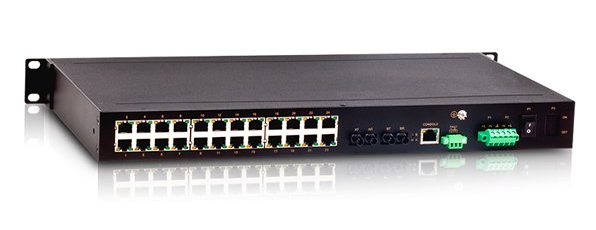

Kyland Layer 2 (Layer 2) switches are manageable or manageable Ethernet devices designed to operate reliably in electrically demanding and climatically demanding substations and industrial environments. These types of devices allow 19-inch 1U and 2U rack mounting, support 24, 28, 32 and 48 ports with fast Ethernet, gigabit and 10 gigabit configuration, supporting layer 2 software functions such as ports, VLANs, multicasting , QoS and fast redundant ring. Layer 2 switches support administration and management by console, Telnet, Web and through SNMP-based network management software. Today, the product is widely used in the automation of electrical systems, oil and gas distribution networks, and many other industrial communication systems.
Solutions and references
Switch (Layer 2)
Reference

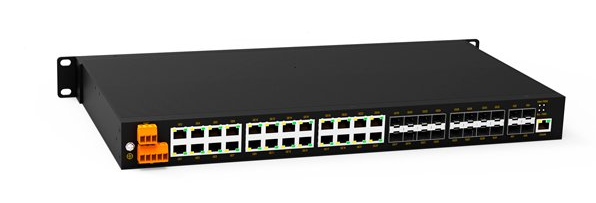

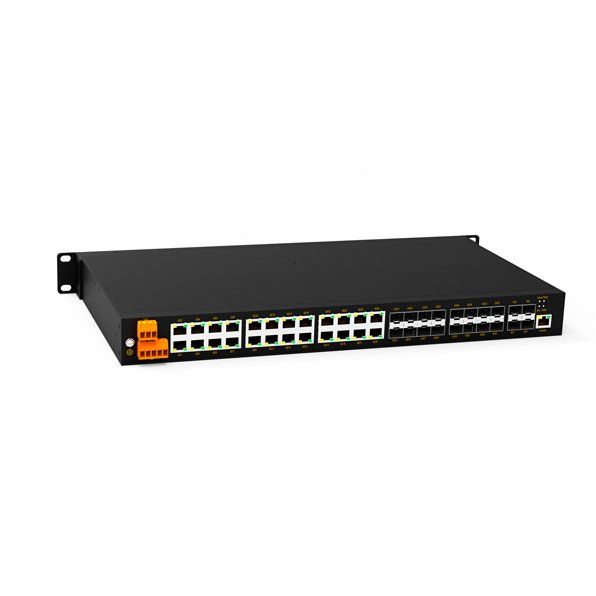

SICOM3432G
32G/24G 4X ports Layer 2 managed rack mountable switch
characteristics
- Supports gigabit combo ports with the option of 1000 Base-T (X) RJ45 or 1000 Base-X Fiber
- Max supports four 10 gigabit ports, 32 gigabit ports
- Supports DRP / DHP, STP / RSTP / MSTP, ERPS (G.8032) for network redundancy
- Supports Qos, VLAN, SNMP v1 / v2 / v3, RMON (group 1,2,3,9)
- Supports SFP digital diagnostic monitoring
- Supports protection class PTPv2IP40
Reference

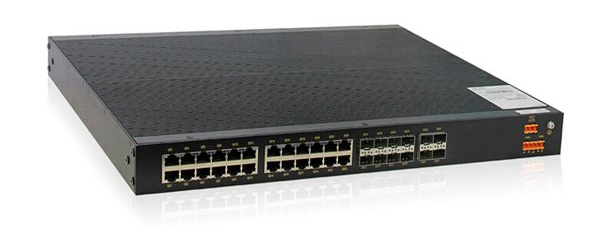

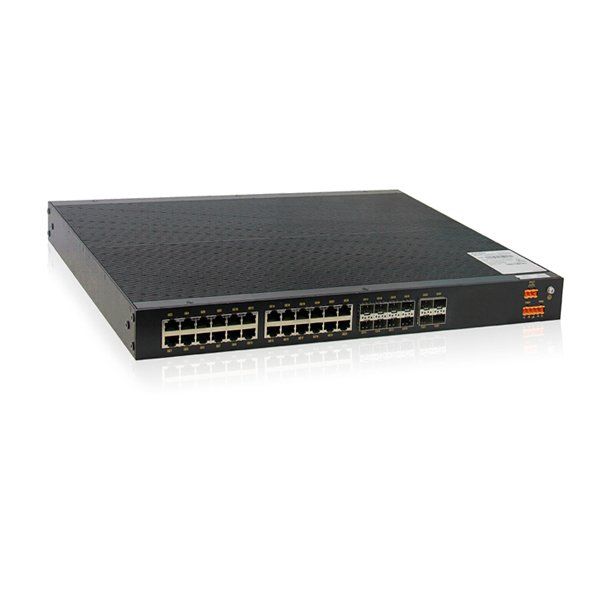

SICOM3024G
24 full Gigabit ports Layer 2 managed rack mountable switch
characteristics
- Supports up to 24 Gigabit ports, includes 12 combo ports, supports 1 extension slot
- DT-Ring, DRP, RSTP / MSTP support for network redundancy.
- EMC Level 3
- IP30 protection
- CE, FCC
Reference

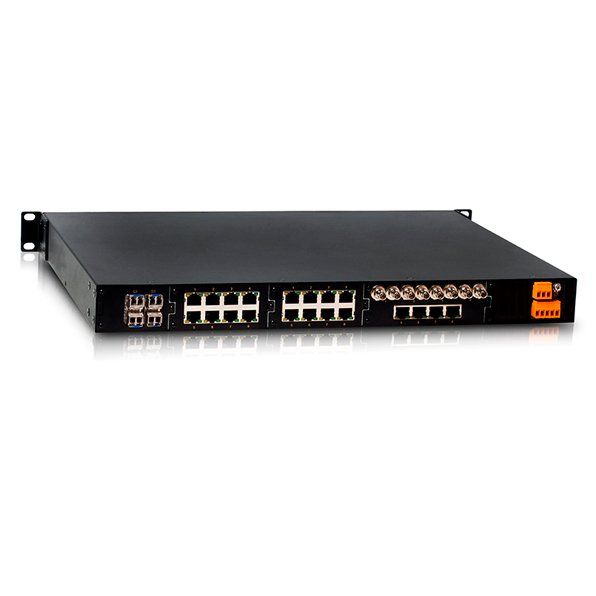

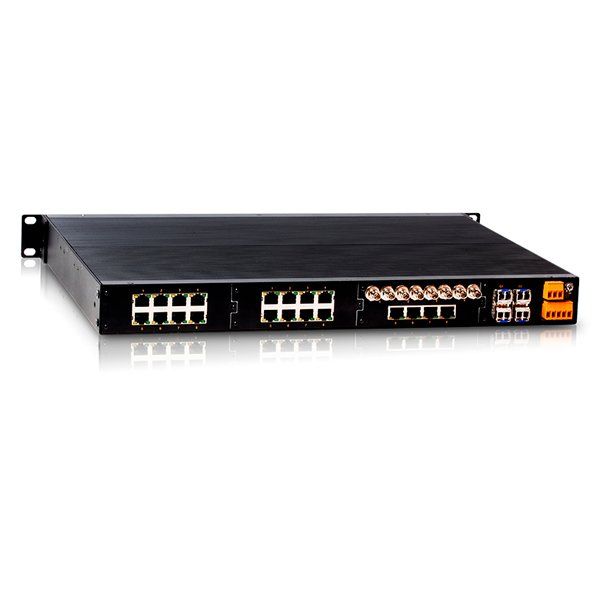

SICOM3024P
24 4G Ports Layer 2 Managed Rack Mountable Switches
characteristics
- Supports a maximum of 4 gigabit fiber / copper ports and 24 fast fiber / copper Ethernet ports
- Internal modular design for easy expansion.
- Supports DT-Ring, DRP, RSTP for network redundancy
- Supports IEC61850 MMS management (special firmware)
- Supports alarm loading and syslog
- Complies with IEC61850-3 and IEEE1613
- KEMA, CE, FCC, UL certified
Reference

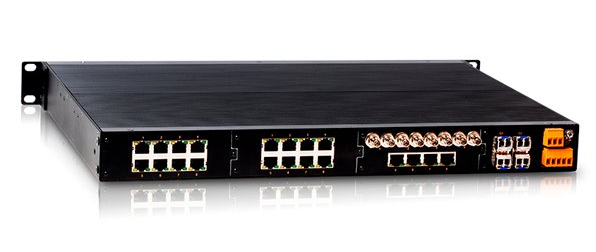

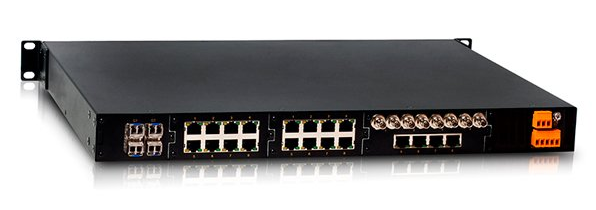

SICOM3024
24 4G Port Layer 2 Managed Rack Mountable Switches
characteristics
- Supports a maximum of 4 gigabit SFP ports, 16 RJ45 Fast Ethernet ports and 8 fiber / copper Fast Ethernet ports
- Supports DT-Ring, RSTP for network redundancy
- Supports IP / MAC address conflict alarm, power failure alarm, power alarm, port alarm and ring alarm
- CE, FCC certification
Reference

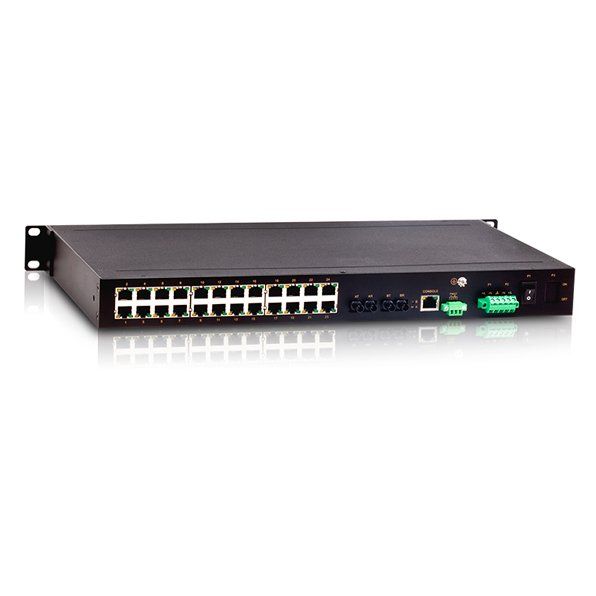

SICOM2024M
28 Port Layer 2 Managed Rack Mountable Switches
characteristics
- Supports up to 4 Fiber Ethernet Fast Ports and 24 RJ45 Ethernet Fast Ports
- Supports IP / MAC address conflict alarm, power failure alarm, power alarm, port alarm
- Allow front and rear panel mounting
- CE, FCC certification
Reference

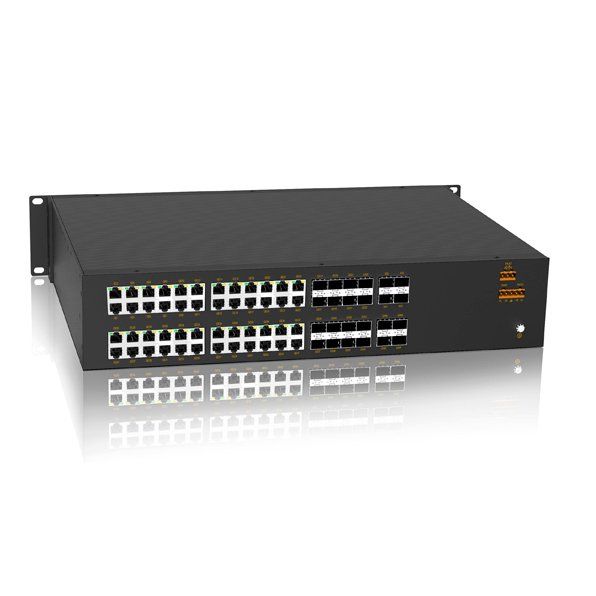

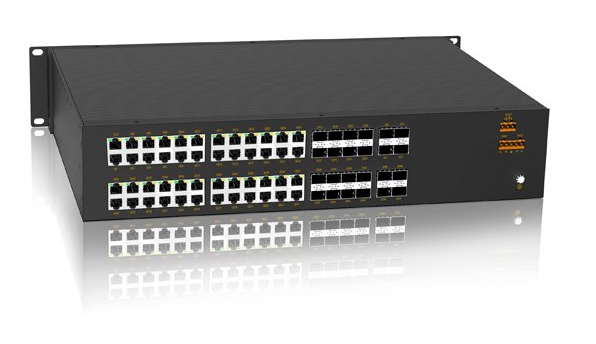

SICOM3448G
48G 4X ports Layer 2 managed rack mountable switch
characteristics
- Supports a maximum of 4 10 Gigabit ports, 48 Gigabit ports
- Supports DT-Ring, DRP, RSTP / MSTP for network redundancy.
- EMC Level 3
- IP30 protection
- CE, FCC
