StationCentral

StationCentral

Integral SCADA solution

CONTACT AN ADVISOR
StationCentral is a comprehensive solution for substation automation that provides real-time control and monitoring being a solution Integral SCADA and adaptable. It includes Survalent's powerful data acquisition engine, secure gateway, and graphical user interface (GUI), which enables digital capabilities for substations in a wide range of industries. StationCentral significantly improves the operation and monitoring of IEDs or substation devices while improving reliability in the field as well as in the control room.

The fully scalable application from simple to quadruple redundancy can be configured in a multi-substation distributed architecture and offers seamless interoperability between substation and control room. It supports a wide range of open and legacy protocols that run in native mode, so there is no need for an external protocol converter, internal converter, or front processor.
With two GUI options available, you have the flexibility to choose the display interface that best meets your substation automation needs: StationCentral VU or SmartVU.
REQUEST FOR MORE INFORMATION

Characteristics

StationCentral offers a wide range of optional features and applications associated with substation automation requirements:

  • Seamless communications interoperability
  • Robust data acquisition engine
  • Advanced supervisory control
  • Full database editing capabilities
  • High performance, scalability and availability

  • Flexible reporting / reporting capabilities
  • Advanced viewer option
  • Reduction of start-up time with automation tools

SCADA

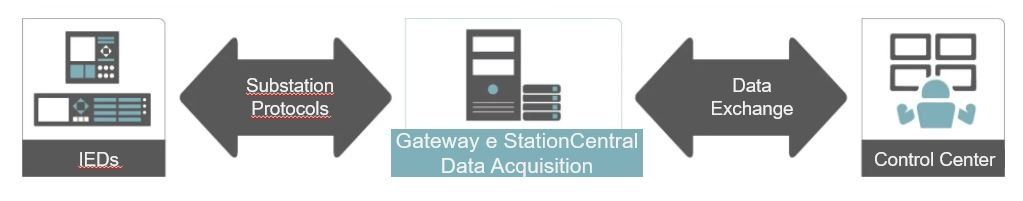

Data Acquisition Engine and Gateway

(Gateway)
Database editing software StationCentral It allows the management of all the points of the database, access control, control zones, system parameters and advanced application configuration. The database editor provides a graphical tree representation of the entire database and supports easy navigation through the database to the desired items for editing. The Gateway solution converts substation device protocols to standard protocols that allow you to communicate with systems outside of your substation.

The application is capable of accommodating an unlimited number of status and control points, analog input points, text points, communication lines, RTUs, IEDs, reports and graphic symbols.

The displays on all workstations update and respond to controls during an alarm explosion. The application is third-party tested and meets the system availability requirements in accordance with IEEE standards.

StationCentral It supports a wide range of protocols, including ICCP, MultiSpeak, OPC, SNMP, DNP3, Modbus RTU, and TCP, and the IEC family of protocols (IEC 61850 Edition 1 and Edition 2, IEC 60870 101, 104).
REQUEST FOR MORE INFORMATION

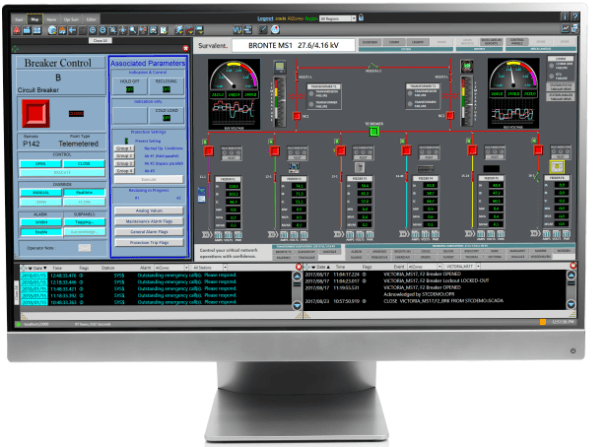

HMI - Graphical interface options
of user

  • StationCentral VU

    It has multi-server support that gives users a complete overview of the processes and systems being monitored in a single view that is easy to read and navigate.


    Screen access is based on established user rights, allows for a view-only screen, a supervisor screen, or a full edit mode.

  • SmartVU

    It offers enhanced graphics visualization and editing capabilities to manage complex substation assets.


    It has an intuitive Windows-based GUI that makes it easy to view, manage, edit and share all aspects of substation information. The interactive, well-organized, and customizable interface provides an in-depth view of all substation assets, greatly improving operator productivity, allowing them to monitor and maintain precise local control.

SCADA
